Description

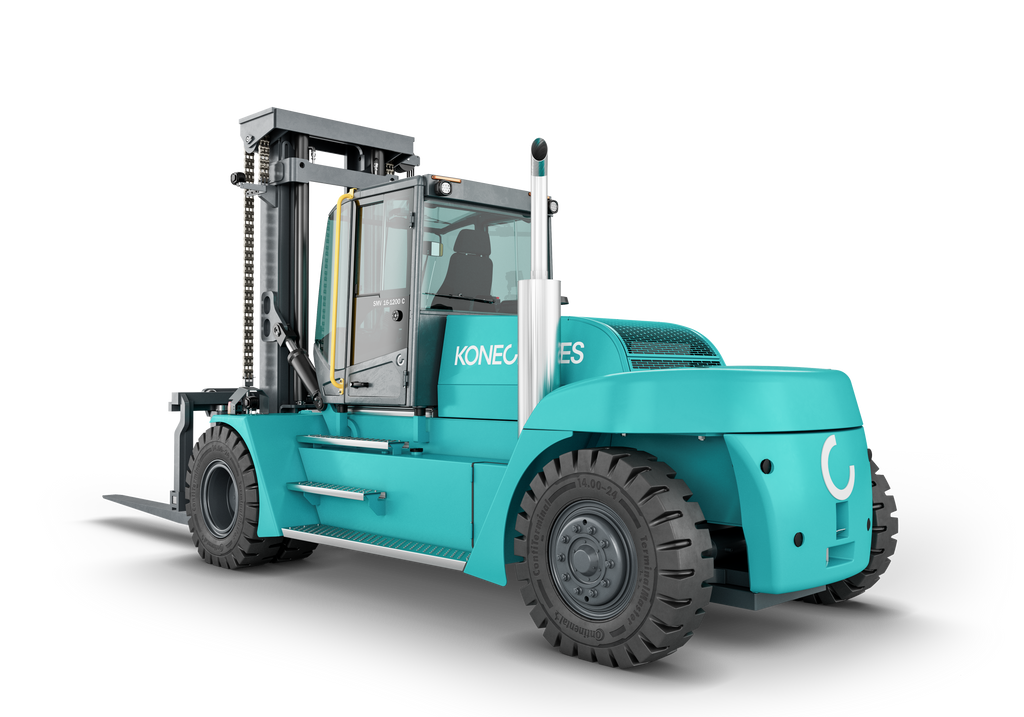

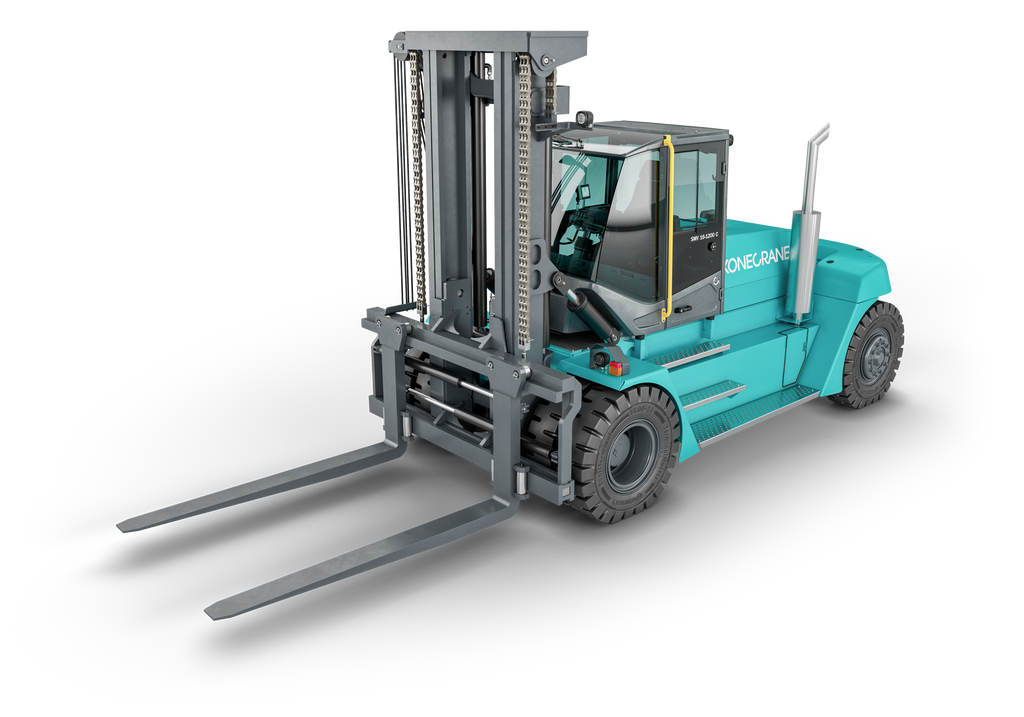

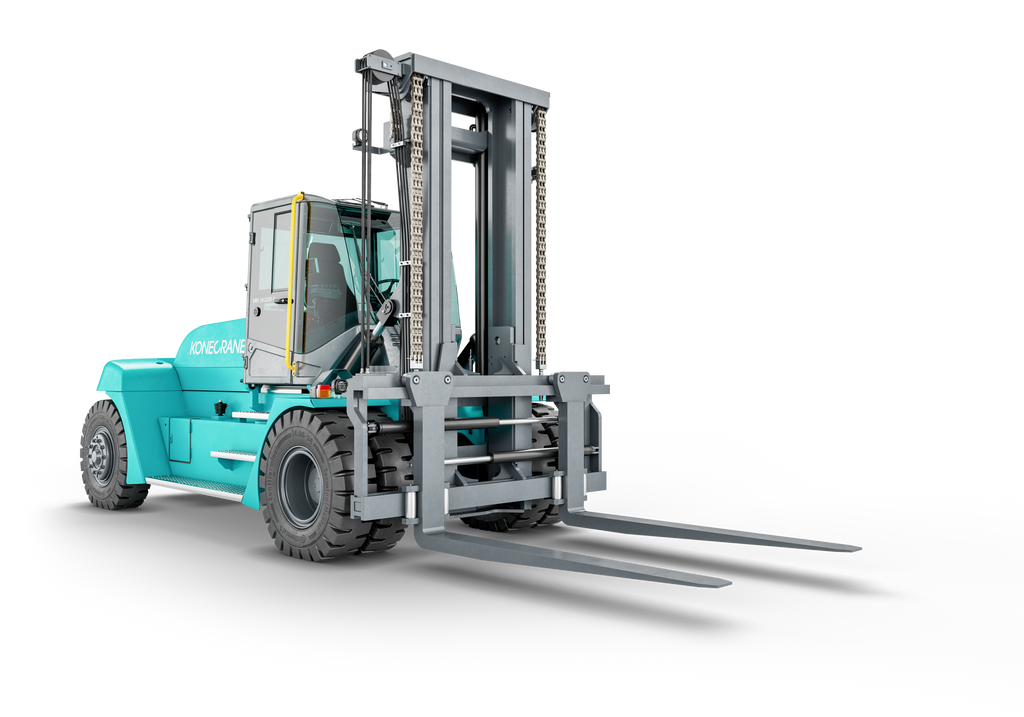

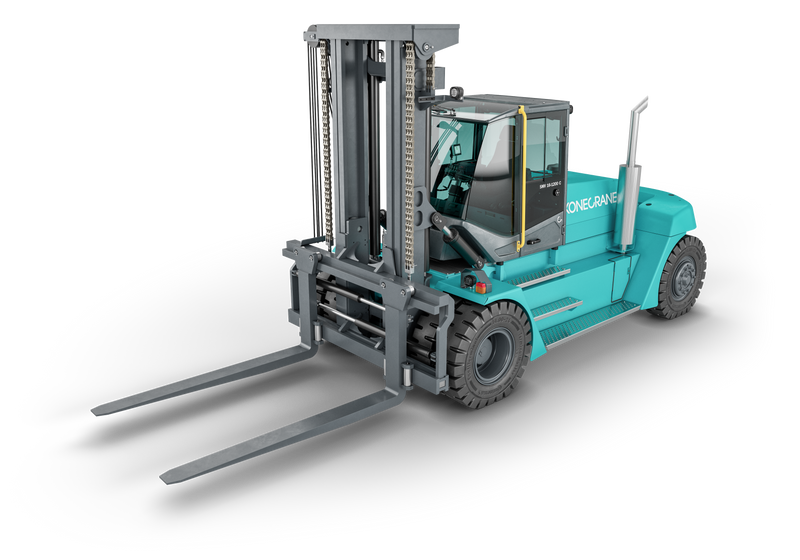

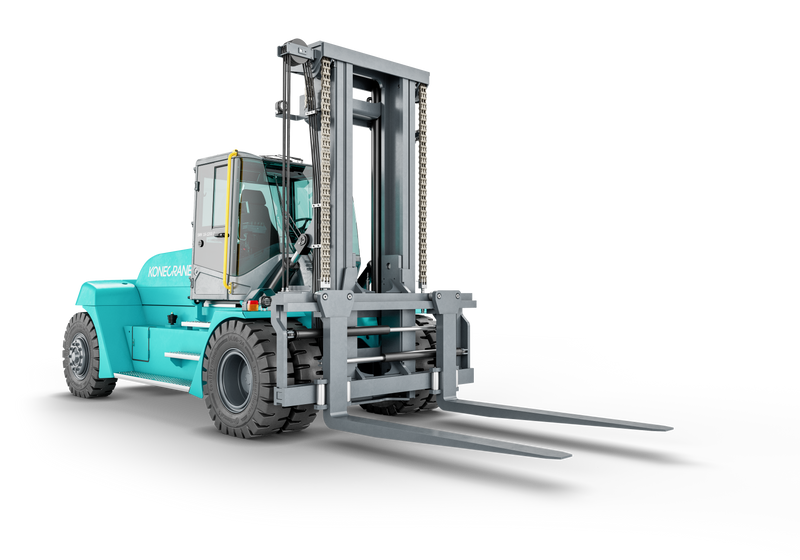

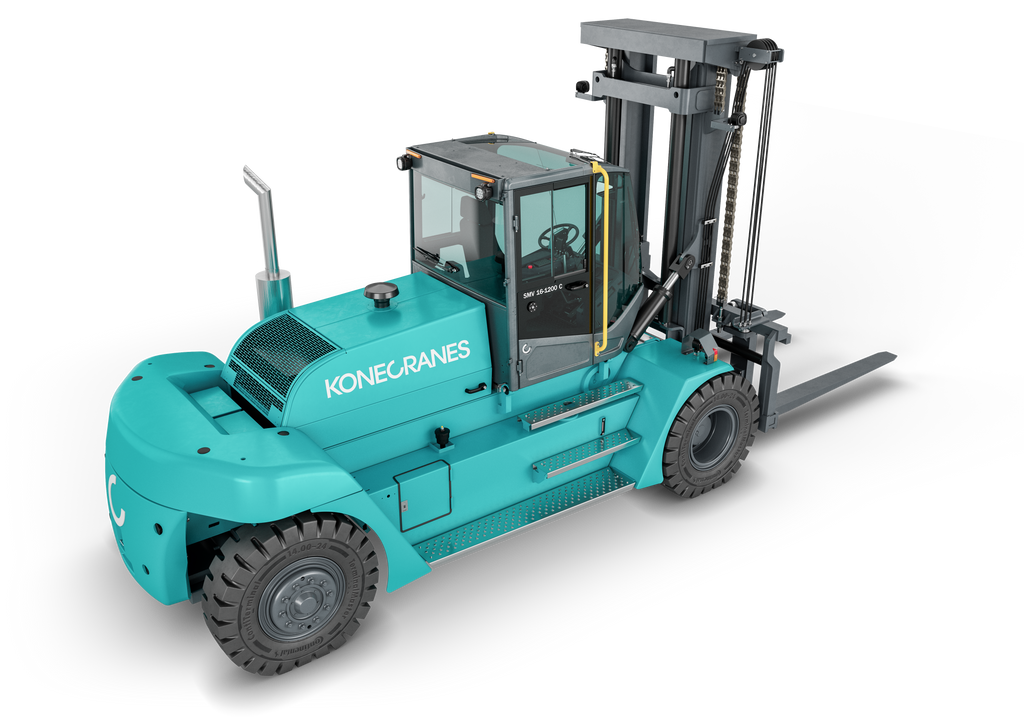

The Konecranes SMV 16-600C is a 36,000 lb (16-ton) heavy forklift. The features and specifications below reflect the standard Konecranes SMV forklift build, confirmed by this machine's technical data sheet.
Drive Line
The engine is a certified low-emission CanBus diesel with turbocharger and intercooler. The automatic transmission gives electronically controlled softshift gear changes for smooth operation, and the Kessler drive axle has a two-stage reduction with integral oil-cooled wet disc brakes.
- Engine: Volvo TAD881-VE diesel, 185 kW (248 hp), Stage V / Tier 4 Final, 6-cylinder inline, 1175 Nm torque
- Transmission: ZF 191WG automatic, 3 forward / 3 reverse, softshift powershift
- Drive axle: Kessler D81 with oil-cooled wet disc brakes
- Steering: Konecranes steer axle, hydraulic power steering
Load Sensing Hydraulic System
Low energy consumption is reached with the power-on-demand function of the Konecranes load-sensing hydraulic system, using a variable axial piston pump, proportional valves, and electronic controls.
- Parker P2-series load-sensing system
Electronic Machine Control (EMC)
An electronic monitoring and overload system optimizes performance and lets the operator monitor the truck or fleet.
Mast & Forks
Konecranes duplex standard 2-stage mast with a free-visibility design, hydraulic integral roller carriage, and roller-type forks.
- Mast: Konecranes duplex standard, 2-stage
Load Handling
- Lifting capacity: 36,000 lb at 24 in load center
- Drive speed: 19 mph forward and reverse
Wheels, Weights & Capacities
- Tires: 12.00 x 20 in (PR 20) pneumatic, 4 driven plus 2
- Service weight: 42,100 lb
- Fuel tank: 52 gal, hydraulic tank: 51 gal
Norms & Standards
- Stability ISO 22915-2; Safety EN ISO 3691-1
- Cab noise 67 dB(A)
Specifications reflect the standard machine. Unit year, hours, and condition available on request.
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Estimate shipping

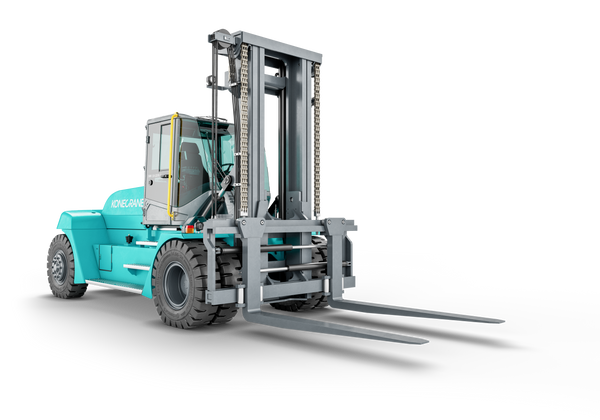

Konecranes SMV 16-600C Forklift, 16-Ton
Specifications
| Type | Forklift |
|---|---|
| Make | Konecranes |
| Model | SMV 16-600C |
| Capacity | 16 ton |
| Lift capacity | 36,000 lb at 24 in load center |
| Application | General Handling |
| Attachment | Forks |
| Engine | Volvo TAD881-VE, 248 hp, Stage V / Tier 4 Final |
| Transmission | ZF 191WG (3 fwd / 3 rev) |
| Drive axle | Kessler D81 |
| Hydraulics | Konecranes load-sensing, power-on-demand |
| Tires | 12.00 x 20 in |
